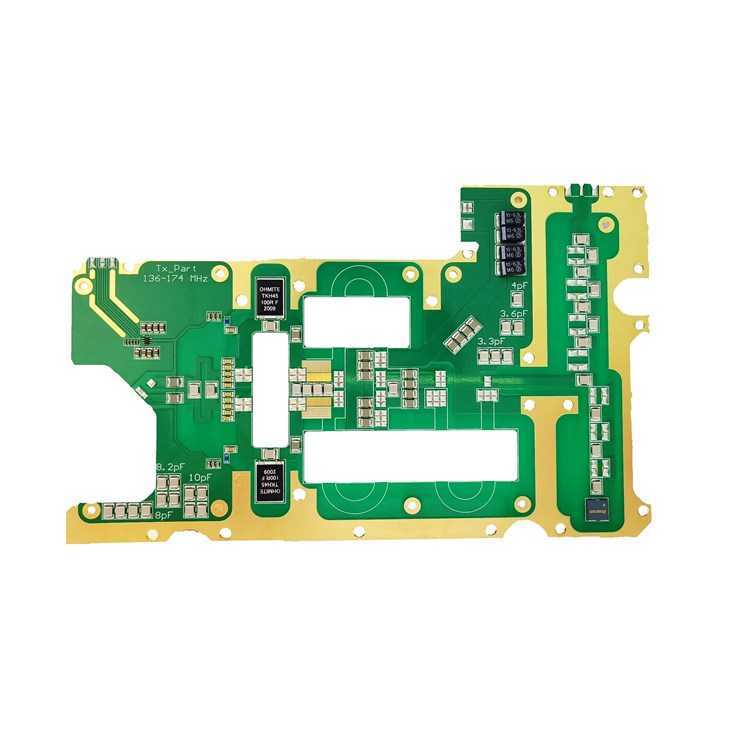

Multilayer 1OZ Electronics PCB Manufacturing Design For Power Module

MOQ : 1

Price : Send us Gerber file for free quotation

Payment Terms : T/T

Layer : 6 Layer

Material : Fr4

Thickness : 1.5mm

Min. Line Width/Space : 0.1/0.1mm

Copper Thickness : 1OZ

Surface treatment : Immersion Gold

Application : Power Module

Certificate : UL & IPC Standard & ISO

Contact Now

Multilayer PCB Manufacturing for Power Module

♦ What's Multilayer PCB?

A Multilayer PCB (Printed Circuit Board) is a type of PCB that consists of three or more conductive copper layers laminated together with insulating material (substrate) to form a compact, high-density circuit board. These layers are interconnected through vias (plated holes) to establish electrical connections between them.

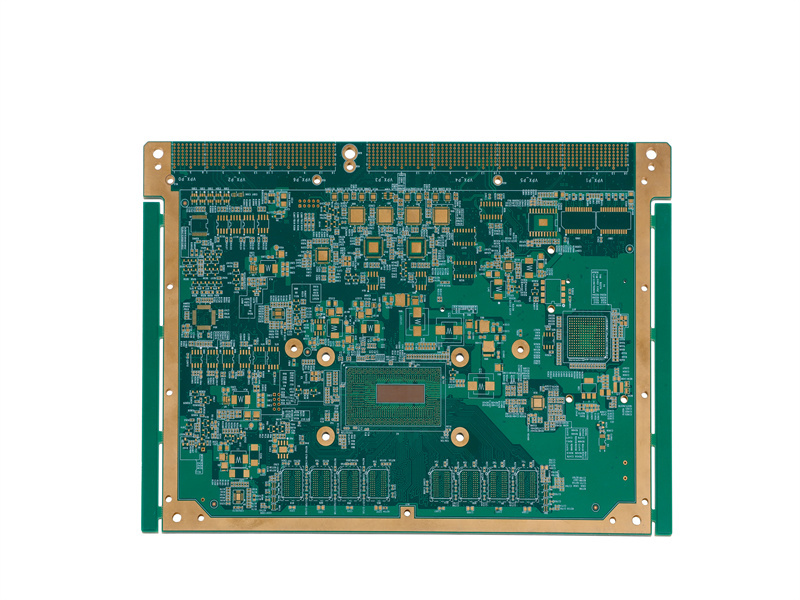

Multilayer 1OZ Electronics PCB Manufacturing Design For Power Module

♦ Key Features of Multilayer PCBs:

1. Multiple Layers: Typically 4, 6, 8, or even up to 50+ layers in advanced applications.
2. High Density: Allows complex circuitry in a smaller footprint.
3. Improved Performance: Better signal integrity, reduced EMI (electromagnetic interference), and controlled impedance.
4. Power & Ground Planes: Dedicated layers for power and ground improve stability and reduce noise.
5. Complex Applications: Used in high-speed digital, RF, and high-power circuits.

♦ Technical Parameters

Item	Specification
Laers	1~64
Board thickness	0.1mm-7.0mm
Material	FR-4,CEM-1/CEM-3,PI,High Tg,Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP,HASL,Imm Gold/Nickel/Ag, Electric gold
Copper thickness	0.5-7.0OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.75mm
Hole tolerance	PTH:±0.05 NPTH:±0.025
Certificate	UL,ISO 9001,ISO14001,IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppilers	Shengyi, KB, Nanya, ITEQ,etc.
